DIY eco-C-tex® Beveled Edge Acoustic Panels

Due to the variations in recycled material, each DIY eco-C-tex Beveled Edge Acoustic Panel may vary in color tones, but will typically have a neutral speckled light grey appearance. The amount of variation may be greater from order to order.

Ships In: 2 - 3 Business Days

Choose your product options

Hang Tabs
Keyhole Plates +$10
Edging: eco-C-tex
As low as $24.00

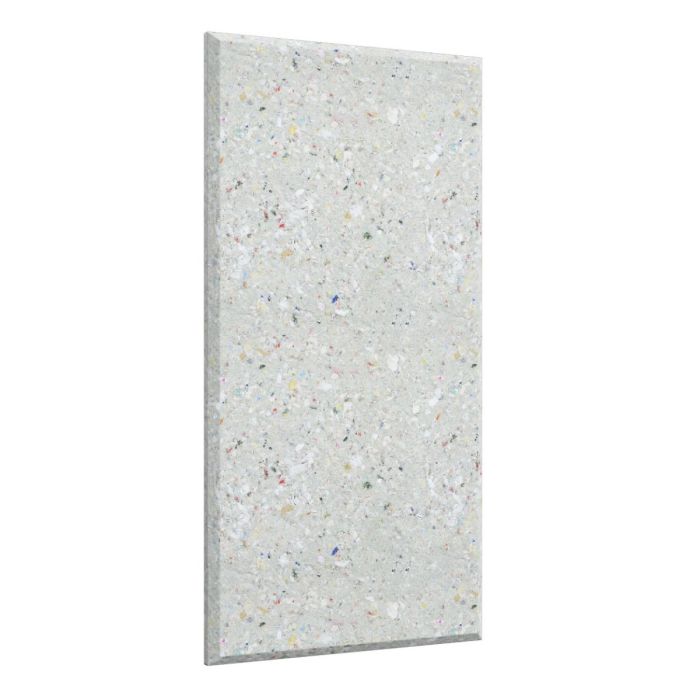

DIY eco-C-tex® Beveled Edge Acoustic Panels

Audimute DIY eco-C-tex products such as the DIY Beveled Edge Acoustic Panels are made with our eco-C-tex sound absorption material, which consists of a blend of recycled cotton and cellulose fibers, the majority of which are post-consumer recycled newspaper. All of our sound absorption products use eco-C-tex as the sound absorption core material. These panels are the same as our DIY eco-C-tex Acoustic Panels, but come with a beveled edge. The beveled edge provides a unique look, especially when the panels are butted up to each other.

The Beveled Edge Acoustic Panels effectively reduce echo and reverberation in homes, classrooms, theaters, restaurants and any other space that needs a noise reduction solution. They can be used on walls, ceilings (including angled surfaces), and other areas such as trusses. To save time and energy, consider ordering our finished Acoustic Panels.


  • DIY: Great product for the DIYer who wants to create their own acoustic solution. The panels can be used as is, but for a more appealing and quality solution, we recommend finishing the panels with your choice of paint, or facing or wrapping them with an acoustic fabric. The panels can be cut if needed with a tool such as a utility knife.
  • Effective: NRC of 0.95 (absorbs an average of 95% of sound that contacts the panel).
  • Safe: Completely fiberglass-free, unlike alternative sound absorbing material. Fiberglass can irritate lungs, eyes, skin, and throat.
  • Eco-Friendly: eco-C-tex takes 1/10th the energy of making fiberglass and 1/40th of making foam.
  • Class-A Fire Rated: Suitable for use in commercial spaces, conforms to most building regulations.

Still have questions? Give our Acoustic Specialists a call at 1.866.505.MUTE.


Please Note: Due to the variations in recycled material, each DIY eco-C-tex Beveled Edge Acoustic Panel may vary in color tones, but will typically have a neutral speckled light grey appearance. The amount of variation may be greater from order to order.

Orders of $2,500 or more may require longer lead times. Please contact us if there are any questions.



Acoustical Performance

Cut Sheets - View our DIY eco-C-tex cut sheet here.

1.5" Thickness - 0.95 NRC - View 1.5" Sound Lab Report here.

Acoustic Tolerance Icon

1.5" Thickness - (+/-) 1/4"

Weights

1' x 2' (1.5 lb), 1' x 3' (2.25 lb), 1' x 4' (3 lb), 2' x 2' (3 lb), 2' x 3' (4.5 lb), 2' x 4' (6 lb), 3' x 3' (6.75 lb), 3' x 4' (9 lb),
4' x 4' (12 lb)

Recycled Materials eco-C-tex® sound absorption material consists of a blend of recycled cotton and cellulose fibers, the majority of which are post-consumer recycled newspaper and requires an astounding 1/10th of the amount of energy to produce compared to traditional fiberglass.
Health Rated Safe for your health. Non-toxic, non-carcinogenic, no fiberglass.
Fire Rating Class A Fire-Rated (ASTM E-84). The materials used in our acoustic products have received the highest rating possible under the ASTM E-84. Learn more.
Acoustic Product Installation Our DIY eco-C-tex Acoustic Panels are designed to be mounted to a surface using methods such as, Hang Tabs, Keyhole Plates, mechanical fasteners, a construction-grade adhesive such as Loctite® Power Grab® Express Heavy Duty, or using a brad nailer such as a Paslode® Brad Nailer and our Compatible Foot. If you choose hang tabs, tabs and mounting screws will be included per panel. If you choose our keyhole plate hanging method, keyhole plates will be adhered to the panel and mounting screws will be included.
View installation instructions here.
Custom Acoustic Solutions Want to create a sound solution that’s totally unique to your space? We have experienced Acoustic Specialists ready to empower you to create your own soundproofing solution. The possibilities are endless with custom images, sizes, shapes, finishing, and framing options. Ready to get the ball rolling? Reach out to one of our Acoustic Specialists via chat, phone 1.866.505.MUTE, contact form, or free room analysis form.

don't see what you need?

customization is available.

learn more
