DIY eco-C-tex® Acoustic Shapes

Due to the variations in recycled material, each DIY eco-C-tex Acoustic Panel may vary in color tones, but will typically have a neutral speckled light grey appearance. The amount of variation may be greater from order to order.

Ships In: 2 - 3 Business Days

Choose your product options

Small
Large
Bicone
Concave Oval
Scallop
Circle
Ring
Chevron
Parallelogram
Right Triangle
Hexagon
Diamond
Plank
Rounded Square
Concave Square
Convex Square
Triangle
Oval
Edging: eco-C-tex
As low as $74.00
Bundle Together & Save
=
Save $3.90
$94.10
Bundle Together & Save
+
Paslode Brad Nailer
10%
+
Electric Trim Ring
10%
As low as $14.00
=
Save $46.40
$491.60

DIY eco-C-tex® Acoustic Shapes

The shapes are functional and decorative, designed to improve sound in a space by reducing sound echo and reverberations through sound absorption. Create designer patterns with varying depths or flush designs. Shapes can be spaced apart or tightly fit together. The shapes can be used on walls and ceilings (including angled surfaces). To save time and energy, consider ordering our finished AcoustiColor® Acoustic Shapes or AcoustiFelt™ Acoustic Shapes.

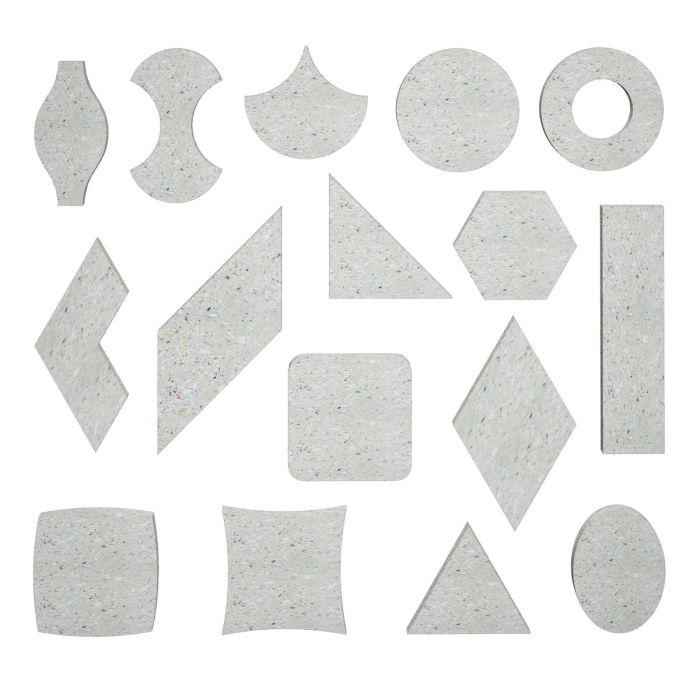

Choose from 16 shapes in two pack sizes (small and large), and three thicknesses (0.5", 1", and 1.5").


Features:

  • DIY: Great product for the DIYer who wants to create their own acoustic solution. The shapes can be used as-is, but for a more finished solution, we recommend finishing the shapes with your choice of paint, or facing them with an acoustic fabric. The shapes can be cut if needed with a tool such as a utility knife.
  • Safe: Completely fiberglass-free, unlike alternative sound absorbing material. Fiberglass can irritate lungs, eyes, skin, and throat.
  • Eco-Friendly: The sound absorption material, eco-C-tex, is made of a blend of cotton and cellulose (most of which comes from recycled newspapers!). Making eco-C-tex takes 1/10th the energy of making fiberglass and 1/40th of making foam.
  • Class-A Fire Rated: Suitable for use in commercial spaces, conforms to most building regulations.

Each order contains 16 square feet of eco-C-tex Acoustic Shapes. The number of shapes included in each order depends on the shape selected and pack size.

Small Pack - Quantity Included per Order:

  • Parallelogram, Diamond: 12
  • Circle: 14
  • Ring, Plank, Rounded Square, Concave Square, Convex Square: 16
  • Chevron: 17
  • Oval, Concave Oval, Hexagon: 20
  • Bicone, Scallop: 25
  • Triangle: 28
  • Right Triangle: 32

Large Pack - Quantity Included per Order:

  • Circle, Ring, Parallelogram, Hexagon, Diamond, Rounded Square, Concave Square, Convex Square, Oval: 4
  • Scallop: 5
  • Concave Oval, Triangle: 6
  • Bicone, Chevron: 8
  • Plank: 10
  • Right Triangle: 18

Have questions? Give our Acoustic Specialists a call at 1.866.505.MUTE.


Please Note: Due to the variations in recycled material, each DIY eco-C-tex Acoustic Shape may vary in color tones, but will typically have a neutral speckled light grey appearance. The amount of variation may be greater from order to order.

Orders of $2,500 or more may require longer lead times. Please contact us if there are any questions.



Aoustical Performance

Cut Sheets - View our DIY eco-C-tex cut sheet here.

0.5" Thickness - 0.55 NRC  |  1" Thickness - 0.75 NRC  |  1.5" Thickness - 0.95 NRC - View 0.5" Sound Lab Report here.  |   View 1" Sound Lab Report here.  |   View 1.5" Sound Lab Report here.

Acoustic Tolerance Icon

0.5" & 1" Thicknesses - (+/-) 1/8"  |  1.5" Thickness - (+/-) 1/4".

Weights

Approximately 0.75 - 1 lb per piece.

Recycled Materials eco-C-tex® sound absorption material consists of a blend of recycled cotton and cellulose fibers, the majority of which are post-consumer recycled newspaper and requires an astounding 1/10th of the amount of energy to produce compared to traditional fiberglass.
Health Rated Safe for your health. Non-toxic, non-carcinogenic, no fiberglass.
Fire Rating Class A Fire-Rated (ASTM E-84). The materials used in our acoustic products have received the highest rating possible under the ASTM E-84. Learn more.
Acoustic Product Installation Our Acoustic Panels are designed to be mounted to a surface using hardware such as ourhang tabs, a construction-grade adhesive such as Loctite® Power Grab® Express Heavy Duty, or using a brad nailer such as a Paslode® Brad Nailer and our Compatible Foot. Other installation methods can be used, such as industrial foam tape, however, we have not tested other methods and therefore cannot guarantee their effectiveness and are not responsible for installation failures.
View installation instructions here.
Custom Acoustic Solutions Want to create a sound solution that’s totally unique to your space? We have experienced Acoustic Specialists ready to empower you to create your own soundproofing solution. The possibilities are endless with custom images, sizes, shapes, finishing, and framing options. Ready to get the ball rolling? Reach out to one of our Acoustic Specialists via chat, phone 1.866.505.MUTE, contact form, or free room analysis form.
